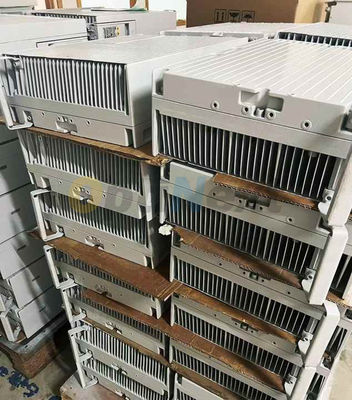

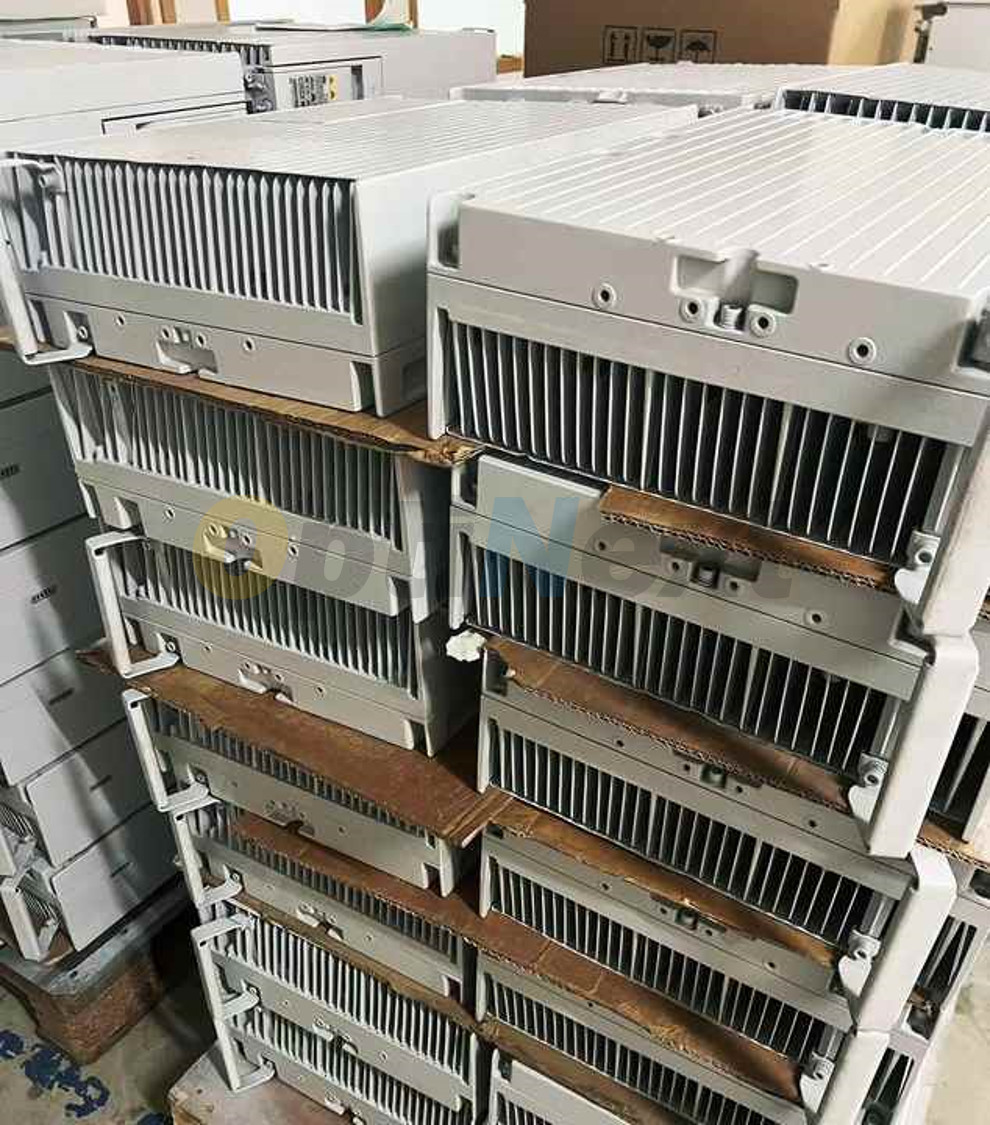

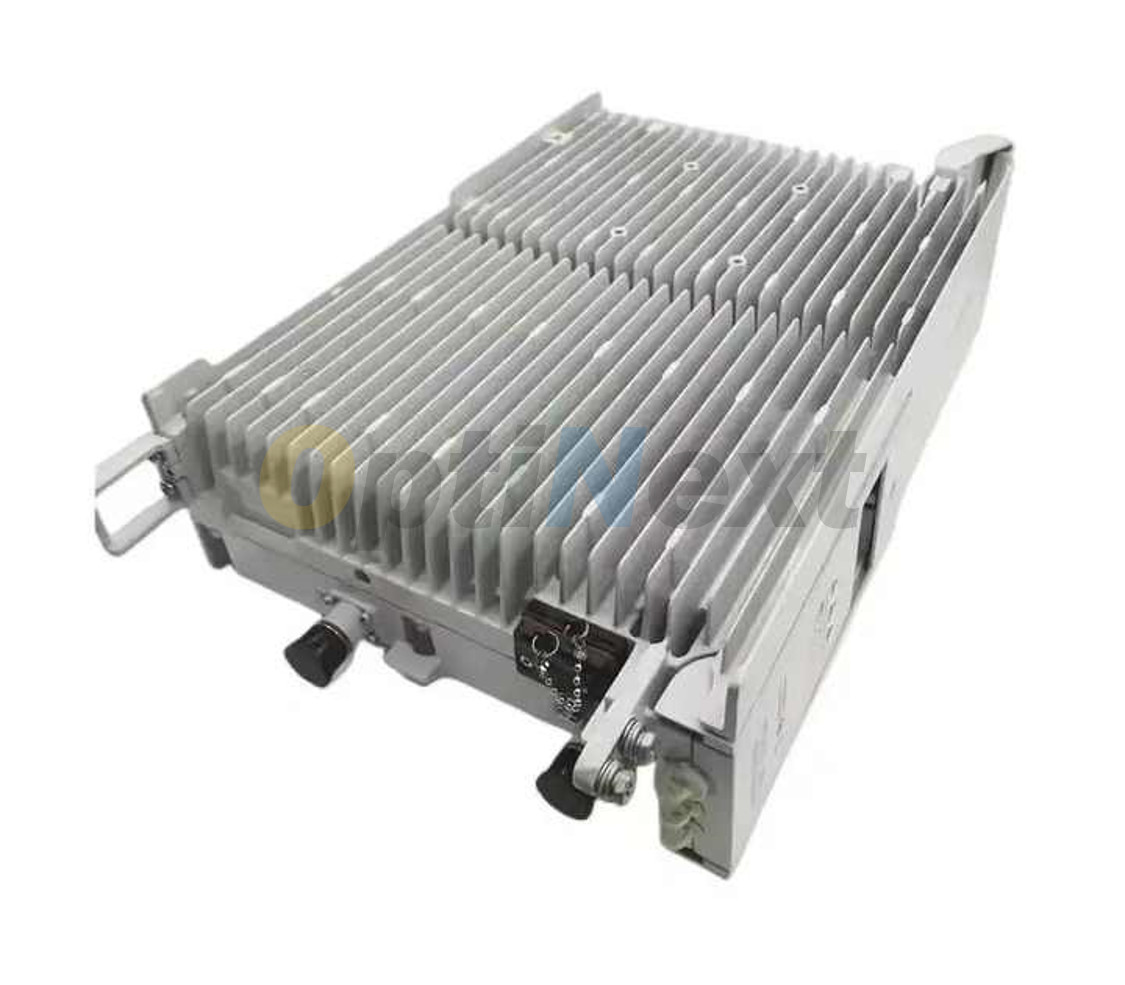

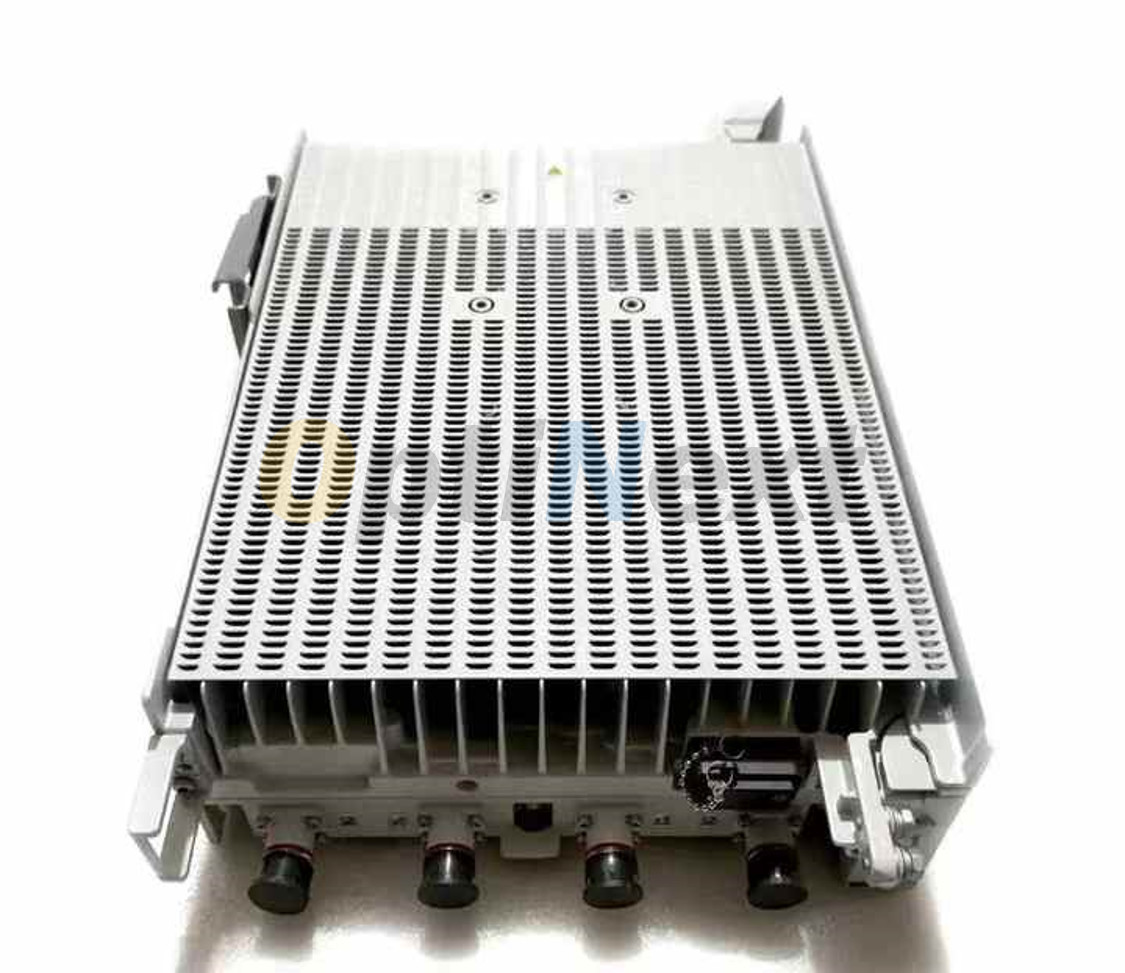

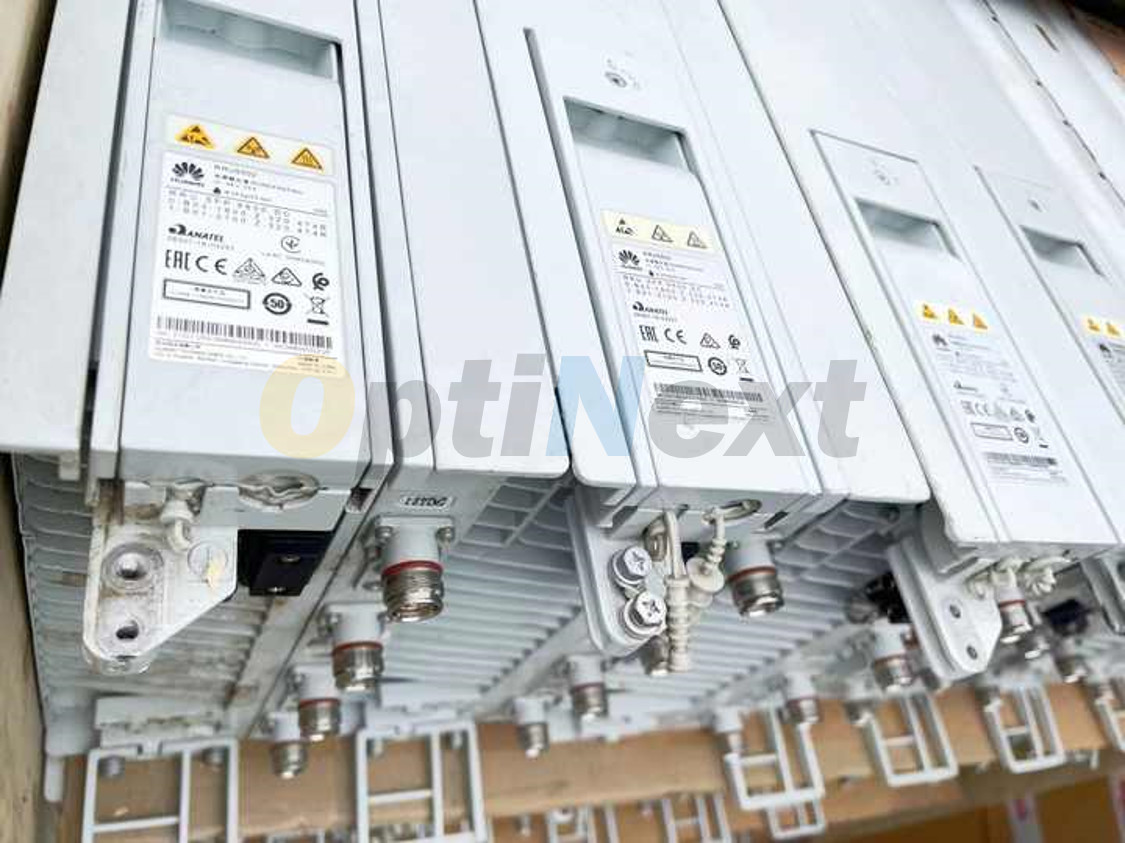

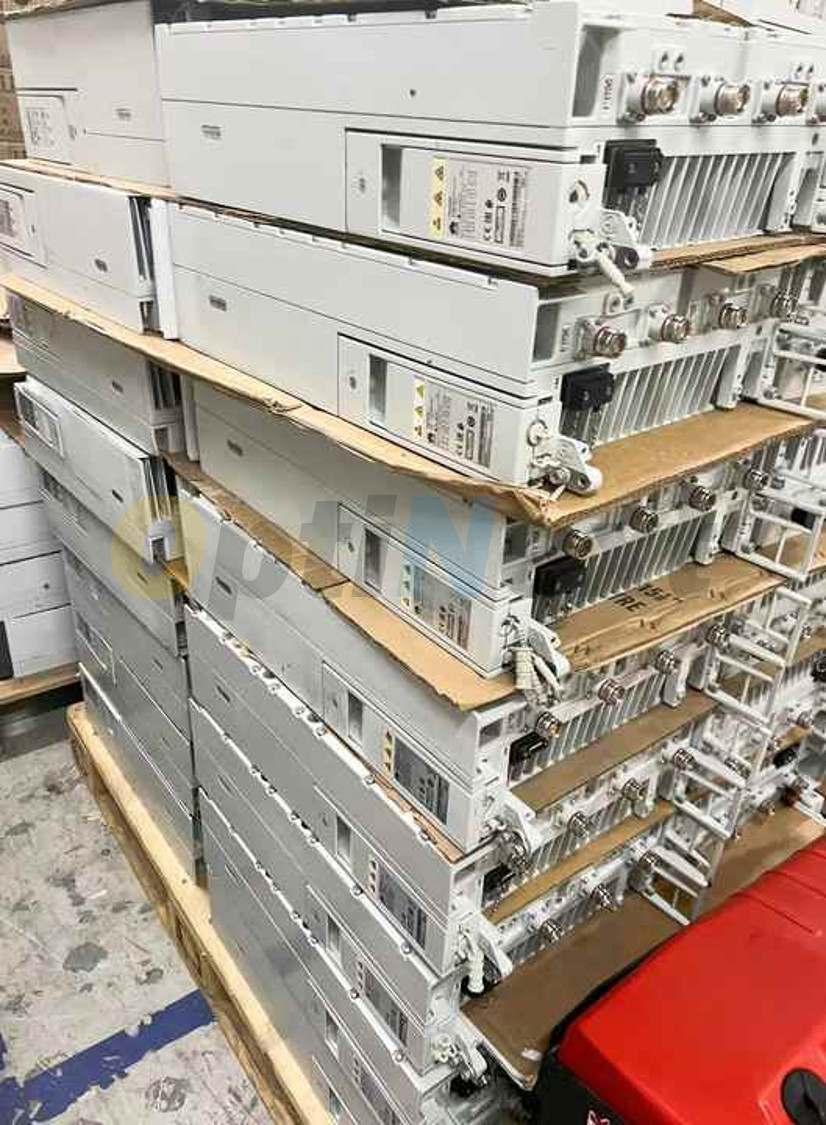

RRU5904W
| Place of Origin | China |
|---|---|
| Brand Name | Huawei |
| Model Number | RRU5904W |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
3 RRU5904w (850 MHz) Technical Specifications
The technical specifications of an RRU5904w (850 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
3.1 RRU5904w (850 MHz) RF Specifications
The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
Supported Frequency Bands and RATs
Table 3-1 Frequency bands and RATs supported by an RRU5904w (850 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
RX Frequency Band (MHz) |
TX Frequency Band (MHz) |
RAT |
IBW (MHz) |
|---|---|---|---|---|---|
| 850 | Band 26/n5 | 814–849 | 859–894 | GSM, UMTS, LTE FDD, GU, GL, UL, GUL, LTE NB-IoT, GM, UM, LM, GLM, ULM, GUM, GULM, NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), MN (FDD), UMN (FDD), GLMN (FDD)a |
|
| a: When the RRU5904w works in the RX frequency band of 814 MHz to 824 MHz or the TX frequency band of 859 MHz to 869 MHz, it cannot work in GSM, UMTS, or NR FDD mode. | |||||
4 RRU5904w (1800 MHz) Technical Specifications
The technical specifications of an RRU5904w (1800 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
4.1 RRU5904w (1800 MHz) RF Specifications
The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
- In the following, G is short for GSM, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
- In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.
Supported Frequency Bands and RATs
Table 4-1 Frequency bands and RATs supported by an RRU5904w (1800 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
RX Frequency Band (MHz) |
TX Frequency Band (MHz) |
RAT |
IBW (MHz) |
|---|---|---|---|---|---|
| 1800 | Band 3/n3 | 1710 to 1785 | 1805 to 1880 | GSM, LTE FDD, GL, LTE NB-IoT, GM, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), MN (FDD), GMN (FDD), LMN (FDD), GLMN (FDD) |
75 |
5 RRU5904w (1900 MHz) Technical Specifications
The technical specifications of an RRU5904w (1900 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
5.1 RRU5904w (1900 MHz) RF Specifications
The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, and N (FDD) is short for NR FDD.
Supported Frequency Bands and RATs
Table 5-1 Frequency bands and RATs supported by an RRU5904w (1900 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
RX Frequency Band (MHz) |
TX Frequency Band (MHz) |
RAT |
IBW (MHz) |
|---|---|---|---|---|---|
| 1900 | Band 2/n2 | 1850 to 1910 | 1930 to 1990 | UMTS, LTE FDD, GU, GL, UL, GUL, NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD) | 60 |
