Fiber Optic Terminal Box
| Place of Origin | China |
|---|---|
| Brand Name | OptiNext |
| Model Number | Fiber Optic Terminal Box |
| Minimum Order Quantity | 5 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
1.Basic information

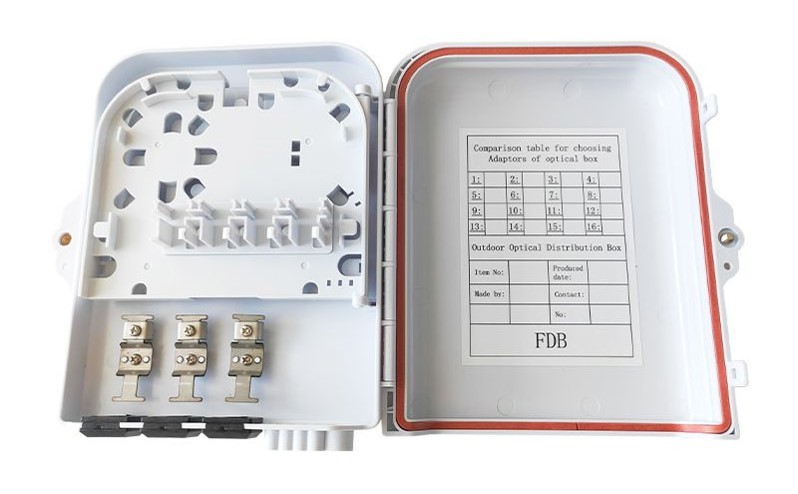

It is an outdoor fiber optic terminal box with 3 U-shape ports and 9 output ports. It can load PLC steel tube type splitter and 8 SC simplex adapters for fiber connection and distribution.
2.Features:
Material: ABS plastic
IP standard: IP65
Color: white or black
Cable ports: 3pcs U-shape cable ports, 9pcs output ports
Can load PLC steel tube type splitter 1x4, 1x8
Application: outdoor wall mounted or pole mounted
3.Specification:
| Model |
Dimension (mm) |
Material | Adapter port | Splicing Capacity | Cable port | Application |
| 193.6x227.5x54.8 | ABS plastic | 8 SC simplex | 8 fibers |
-s3 Uhape cable ports, 9 output ports |
Outdoor wall mounted |
4.Accessories:
| Item | Name | Specification | Qty |
| 1 | Cable clamp | 10-16, stainless steel | 3pcs |
| 2 | Nylon cable tie | 3*120mm, white | 6pcs |
| 3 | Key | 1pc | |
| 4 | Heat shrinkable protection sleeve | 60*3.0*1.0mm | 8pcs |
| 5 | Round Self tapping screws | C type, 4*30mm, metal | 4pcs |
| 6 | Plastic expansion tube | Ф6mm, plastic, white |
4pcs |
